Medium Flow:Fluoride Refrigerants,Air,Liquid.
Medium tempreture:-45¡æ¡«120¡æ.
Original micro-switch enables the reliable switch function.
Flexible installation accessories suits different application..
Pressure Controls composed by high pressure control & Low pressure,mounted on the High &
The Low pressure end of the compressor to adjust the exhaust & inspiration pressure of the compressor.
Specification
|
Model |
Pressure Side(bar) |
Reset |
Factory Setting (bar) |
|
Pressure Range |
Diff |
OFF |
ON |
|
P6M |
¡®-0.7 ¡« 6 |
¡Ü 2 |
Man |
Man |
2 |
|
P30M |
5 ¡« 30 |
¡Ü 4 |
Man |
20 |
Man |

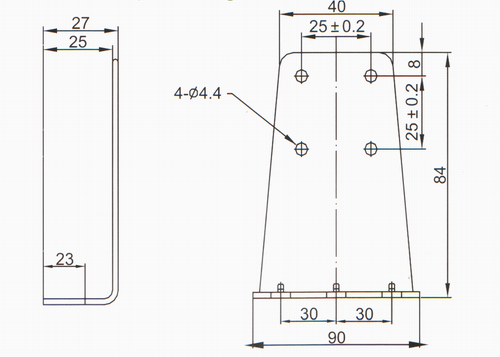

Mounting Bracket

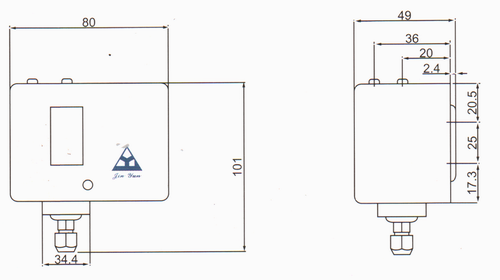

Apperance Drawing
Port Connection
Electrical Specification
|
Rated Voltage¨M Rated Amps |
A.C.125 ¡« 250V |
Power(COSØ) |
|
Non-inductive Current |
12A |
1 |
|
Full Load |
12A |
0£®75 |
|
Locked Roter |
72A |
0£®45 |

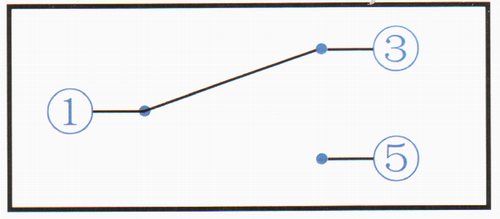

Switch Connection
