Medium Flow: Fluoride Refrigerants,Air,Liquid.¡£
Medium tempreture:-45¡æ¡«120¡æ¡£
Original micro-switch enables the reliable switch function¡£
Flexible installation accessories suits different application¡£
Work as the oil protector of compressor and the alike¡£
Specification
Model |
Pressure Range (bar) |
Factory Setting (bar) |
Reset Period |
|
|
D1.5L |
0.3¡«1.5 |
0.3 |
None |
|
D2L |
0£®3¡«2 |
0.5 |
None |
|
D3.5L |
0£®5¡«3.5 |
1 |
None |
|
D3.5H |
0£®5¡«3.5 |
1 |
None |
|
D6H |
1¡«6 |
1 |
None |
|

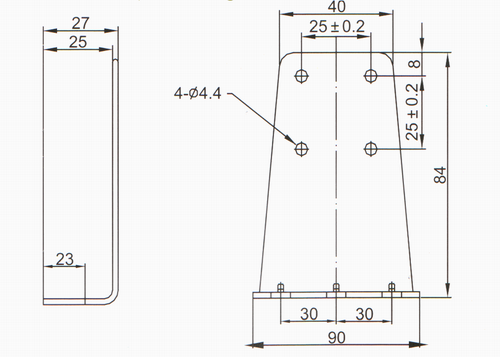

Mounting Bracket

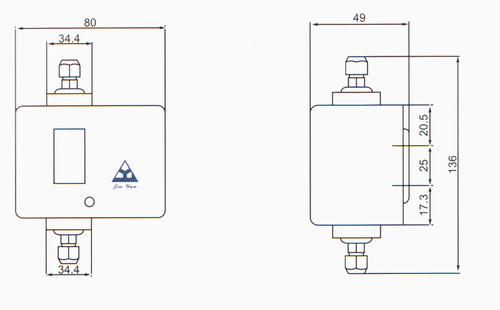

Apperance Drawing

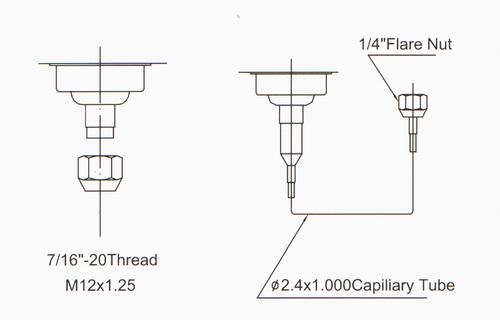

Port Connection
Electrical Specification
Rated Voltage¨M Rated Amps |
A.C.125 ¡« 250V |
Power(COSØ) |
Non-inductive Current |
12A |
1 |
Full Load |
12A |
0£®75 |
Locked Roter |
72A |
0£®45 |

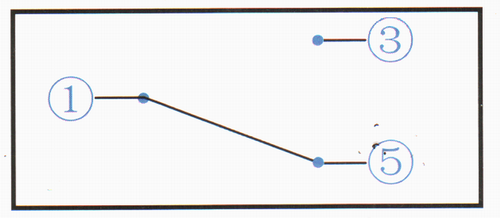

Switch Connection
