Medium Flow:Fluoride Refrigerants,Air,Liquid.
Medium tempreture:-45¡æ¡«120¡æ.
Original micro-switch enables the reliable switch function.
Flexible installation accessories suits different application..
Pressure Controls composed by high pressure control & Low pressure,mounted on the High &
The Low pressure end of the compressor to adjust the exhaust & inspiration pressure of the compressor.
Specification
Model |
Pressure Side(bar) |
Reset |
Factory Setting (bar) |
Pressure Range |
Diff |
OFF |
ON |
P2A |
¡®-0.7 ¡« 2 |
0.5 ¡« 0.75 |
Auto |
1 |
0.5 |
P3A |
¡®-0.7 ¡« 3 |
0.5 ¡« 2 |
Auto |
1 |
0.5 |
P6A |
¡®-0.7 ¡« 6 |
0.6 ¡« 4 |
Auto |
3 |
2 |
P10A |
1 ¡« 10 |
1 ¡« 3 |
Auto |
6 |
5 |
P12DA |
2 ¡« 12 |
1 ¡« 4 |
Auto |
6 |
5 |
P20DA |
4 ¡« 20 |
1 ¡« 5 |
Auto |
12 |
11 |
P30DA |
5 ¡« 30 |
3 ¡« 10 |
Auto |
20 |
15 |
P30A |
5 ¡« 30 |
3 ¡« 4 |
Auto |
20 |
16 |

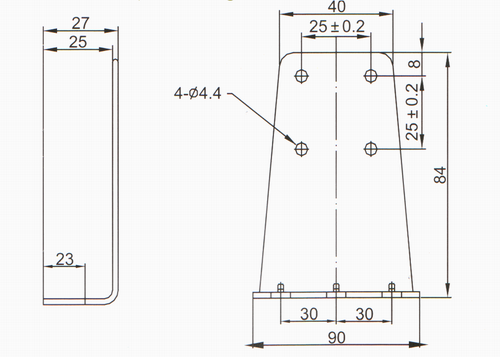

Mounting Bracket

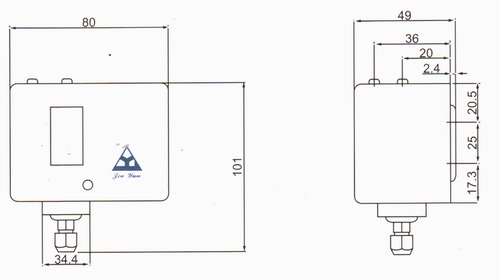

Apperance Drawing

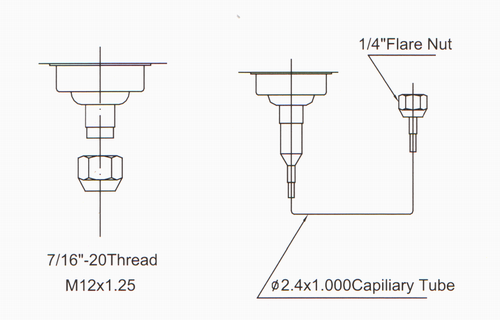

Port Connection
Electrical Specification
Rated Voltage¨M Rated Amps |
A.C.125 ¡« 250V |
Power(COSØ) |
Non-inductive Current |
12A |
1 |
Full Load |
12A |
0£®75 |
Locked Roter |
72A |
0£®45 |

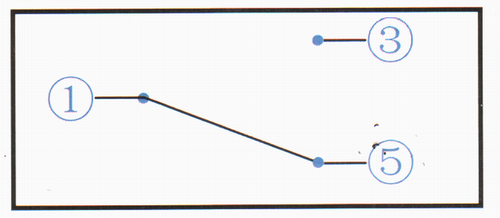

Switch Connection
